PremiDoor 76
Premium Lift & Slide door. Easy to use. Energy efficient. High performing.
The PremiDoor 76 is designed with the user in mind. Its large glass panels offer beautiful views and let in plenty of natural light, while the excellent insulation keeps rooms comfortable and energy bills down. It’s easy to open and close, built to last for decades, and slides smoothly on high quality bogie wheels. With top-notch sealing for security and a wide range of colour options, it checks all the boxes. As with all our doors, the PD76 is delivered unglazed.
Premium comfort
features
- Easy opening and closing
- Handle includes SIEGENIA comfort gear, reducing the effort required to lift door sash
- Durable bogie wheels with a weight capacity of up to 400 kg (880 lb) allow for easy sash operation
- Wheelchair accessible
Large element sizes and glass surfaces
- Maximum door size of 6500 mm (21.33') wide x 2600 mm (8.53') high
- Essentially a moving glass wall, making a statement and letting in abundant natural light
- Lux door option allows for even more natural light
Thermal and acoustical performance advantage
- Five chamber profile system
- Sash thickness of 76 mm (2.99")
- Glass thickness options up to 50 mm (1.97")
High quality for a
long life
- Steel reinforced uPVC profiles
- Welded sash corners
- High quality SIEGENIA hardware
- 10-year warranty
- Made in Canada, designed and engineered in Germany
Opening Types
O = Fixed portion
X = Slider portion
L = Left side slides first
R = Right side slides first
X = Slider portion
L = Left side slides first
R = Right side slides first
Maximum sizes
2 panel: 4572 X 2600 mm / 180" X 102.4"
3 panel: 6500 x 2600 mm / 255.9" X 102.4"
4 panel: 6500 x 2600 mm / 255.9" X 102.4"
2 panel: 4572 X 2600 mm / 180" X 102.4"
3 panel: 6500 x 2600 mm / 255.9" X 102.4"
4 panel: 6500 x 2600 mm / 255.9" X 102.4"
OX
XO
XX L
XX R
XOX
OXO L
OXO R
OXXO L
OXXO R
Maximum sizes
2 panel: 4572 X 2600 mm / 180" X 102.4"
2 panel: 4572 X 2600 mm / 180" X 102.4"
XX R
XX L
XO
OX
Maximum sizes
3 panel: 6500 x 2600 mm / 255.9" X 102.4"
3 panel: 6500 x 2600 mm / 255.9" X 102.4"
XOX
OXO R
OXO L
Maximum sizes
4 panel: 6500 x 2600 mm / 255.9" X 102.4"
4 panel: 6500 x 2600 mm / 255.9" X 102.4"
OXXO R
OXXO L
Finish Options
High Quality Foil
Our most popular finish, foil improves the durability and longevity of door profiles and even reduces warping. Easy to clean and scratch resistant, with different textures as well as colours available, foiled doors are a favourite among homeowners.
Explore Options
AluClip: Clip-On Aluminum Cladding
Get the commercial look and durable finish of aluminum while still benefiting from the thermal performance advantages of uPVC. AluClip is available in any colour for limitless design possibilities.
Custom Paint Colours
If painted doors are what you’re looking for, we do that too, using high quality paint in whatever colour you need.
Installation Related Options

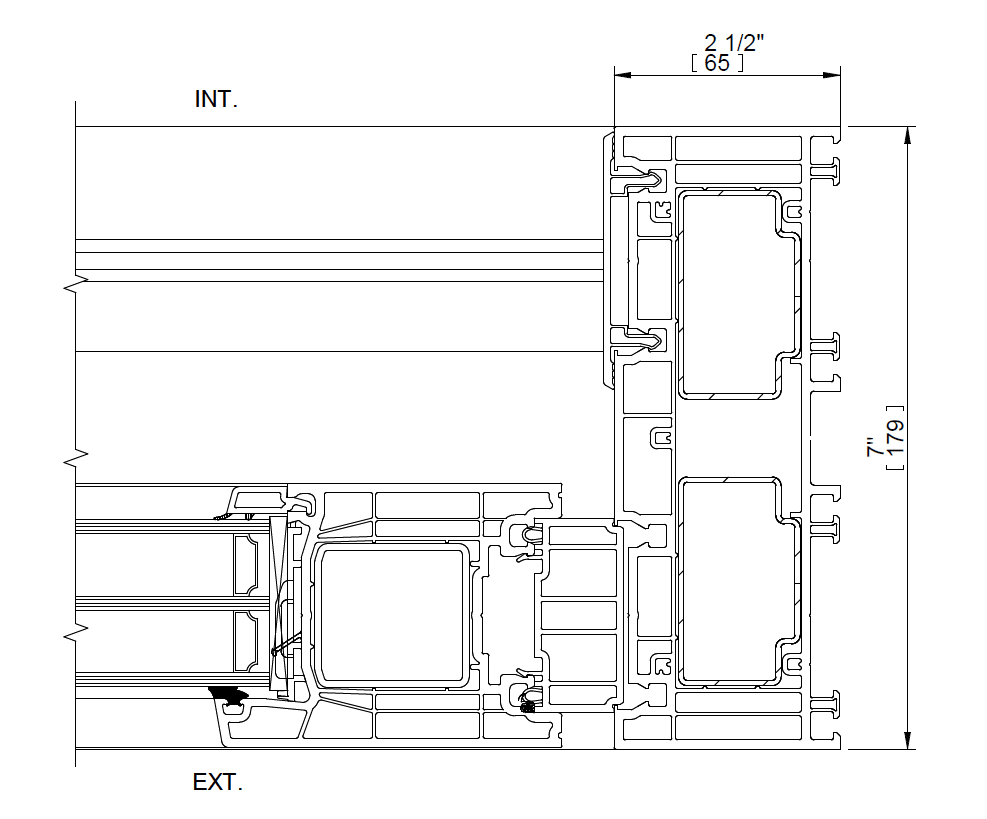

Equal Leg Frame
By default the PD76 frame comes without flange or brickmould.

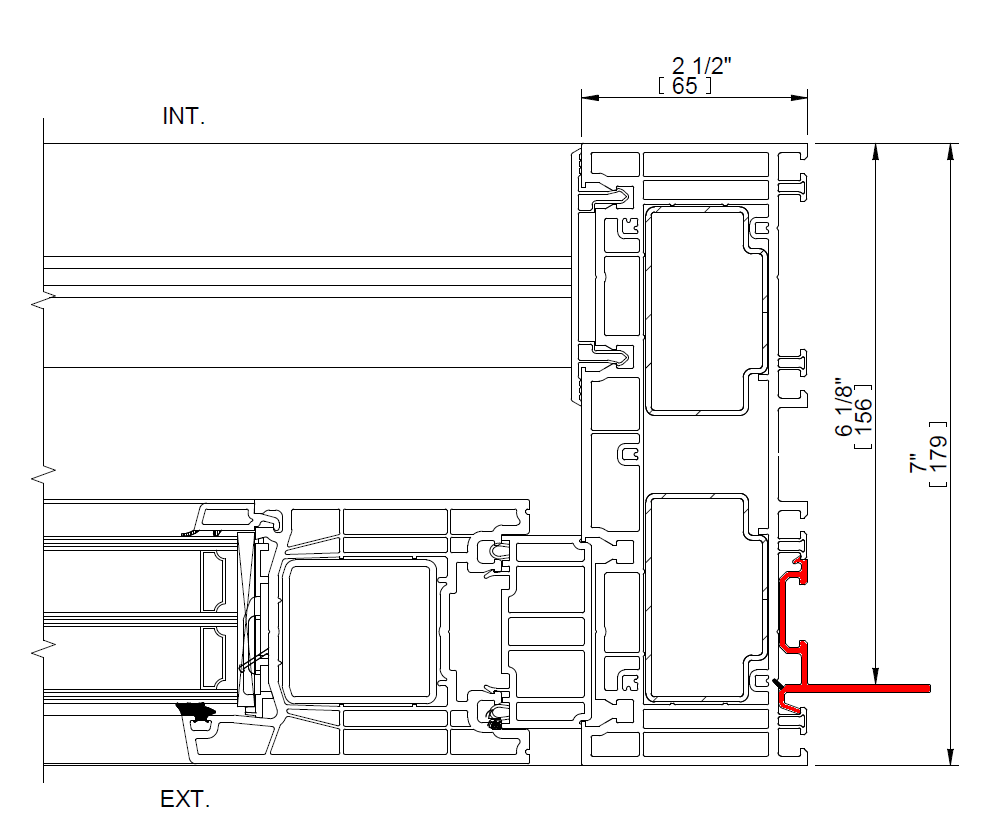

Positioning Flange
Positioning flange is available for the PD76. Flange can be used to simplify the installation process and properly weatherproof the door.

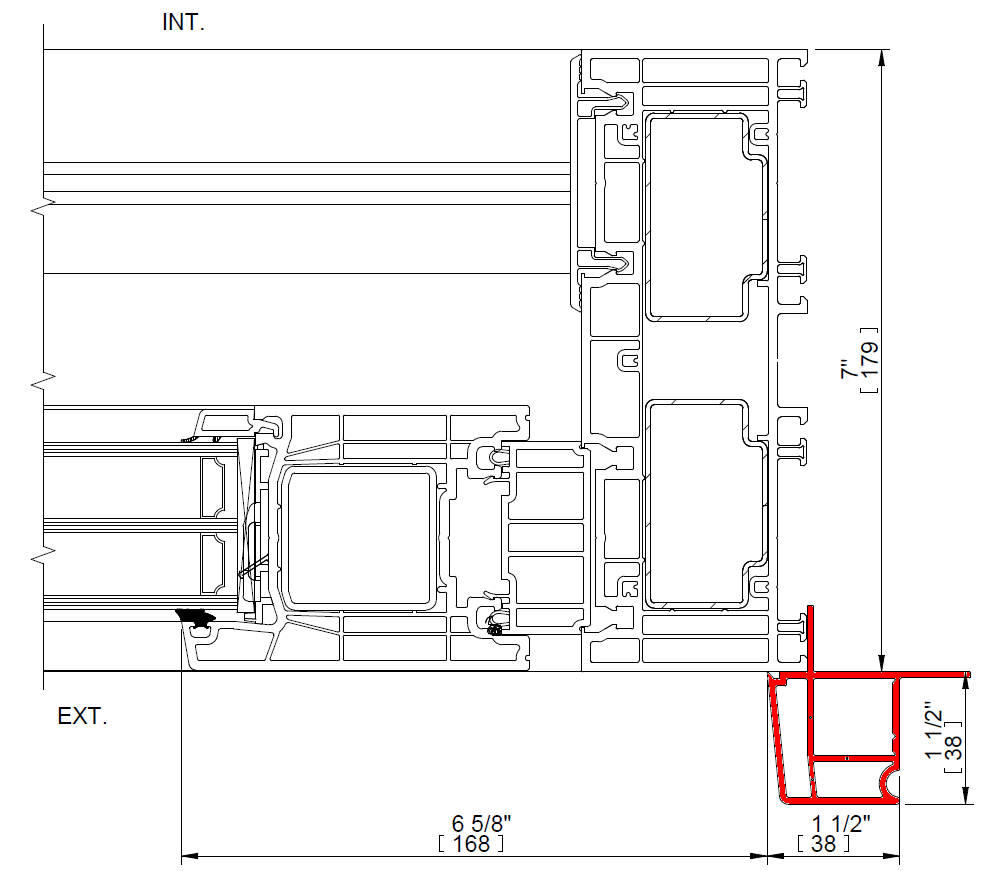

Brickmould
Brickmould is available for the PD76 as an exterior trim option. Especially useful in renovation projects, it can also be used to achieve the aesthetic look of your choice. It is available in any colour, foiled or painted.
Knock-Down Kit
For special projects where there is limited access to the jobsite, we offer a knock-down kit of the PD76. With this option, the frame comes as separate parts and only the sash is in one piece.
Handle Options
Our handle sets can be configured in various ways:
(1) interior handle and exterior recessed pull,
(2) handles on both sides with a thumbturn lock inside and no keylock outside, or
(3) handles on both sides with a thumbturn lock inside and a keylock outside.
HOPPE Toulon Handle
This high quality handle from the reputable European brand HOPPE has a contemporary look and integrated security features. It is available in Black, White and Titanium.
HOPPE Tokyo Handle
This high quality handle, also from HOPPE, has a classic look. It is available in Black, White, Titanium, Silver and Brown.
Additional Options
Lux
With our Lux option, the sash profile of the PD76 is reduced, allowing for a slimmer profile, even larger glazed areas and higher solar energy gains.
Click on the picture to see more.
SOFT CLOSE by SIEGENIA
The SOFT CLOSE function comes highly recommended by our team and makes even doors weighing up to 400kg (880lb) close softly, helping prevent injuries. Invisibly integrated into the sash, it works by braking the sash gently just before it reaches the end position and then automatically pulling the door shut.
Motorized Drive
For ultimate operational comfort and accessibility, the PremiDoor 76 can be equipped with a motor that operates the large sash at the press of the push button on the door, by remote, or with the SIEGENIA app.
Watch Video
Screen Solutions
We offer multiple retractable screen options from Wizard Screen Solutions, as
well as our in-house sliding screen solution.
VistaView™
The VistaView™ from Wizard Screen Solutions is a high-end retractable screen that is captured in both the top and bottom tracks, keeping the mesh retained and tight at all times. Easy to operate, its auto stop technology makes it possible to stop the screen at any desired position to conveniently access doors. It can cover openings up to 8534 mm (28’) wide and 3353 mm (11’) high and is available in five standard colours, with custom RAL colours available upon request.
RetractaView™
The RetractaView™ is another screen from Wizard Screen Solutions, built to last with quality materials. It retracts smoothly and completely when opened. It can cover openings up to 2794 mm (110”) wide and 2743 mm (108”) high and is available in eight standard colours, with custom RAL colours available upon request.
Fentro Sliding Screen
Our in-house manufactured solution, the Fentro sliding screen is a high quality screen made with European screenbar, offering economical and effective bug protection that is perfectly integrated and aesthetically pleasing. It can cover openings up to 2000 mm (78”) wide and 2200 mm (86”) high. Standard colours are white and black, with custom RAL colours available upon request.
Performance Summary
| PremiDoor 88 | PremiDoor 76 | PremiSlide 76 | |
|---|---|---|---|
| Air Tightness | 0.02 cfm/ft2 | 0.05 cfm/ft2 | 0.05 cfm/ft2 |
| Water Tightness | 12.9 PSF | 10.6 PSF | 10.7 PSF |
| Structural - Wind Load Resistance | 60 PSF | 35 PSF | 35 PSF |
| NAFS Performance Class & Grade | LC-PG60 & CW-PG50 | LC-PG35 & CW-PG30 | LC-PG35 & CW-PG30 |
| U-Factor IP (triple glass) | 0.18 | 0.19 | 0.18 |
| SHGC (triple glass) | 0.21 | 0.21 | 0.16-0.35 |
Gallery
Images showcasing our customers’ projects with the PremiDoor 76.
