PremiDoor 88
Premium Lift & Slide door. Huge size possibilities. Easy to use. Energy efficient. High performing.
The PremiDoor 88 is the largest and most energy efficient door we offer and can be built up to 21 feet wide and 9.5 feet high, helping to meet the industry's demand for huge glazed areas. It reaches this size while still being easy to use, and delivers an excellent experience for the end-user: large glazed areas for beautiful views and more light, excellent thermal insulation for better room comfort and lower energy bills, easy opening and closing, strength that lasts for decades, smooth sliding on high quality bogie wheels, and full security with top-notch sealing technology. As with all our doors, the PD88 is delivered unglazed.
Premium comfort
features
- Easy opening and closing
- Handle includes SIEGENIA comfort gear, reducing the effort required to lift door sash
- Durable bogie wheels with a weight capacity of up to 400 kg (880 lb) allow for easy sash operation
- Wheelchair accessible
Large element sizes and glass surfaces
- Maximum door size of 6500 mm (21.33') wide and 2896 mm (9.5') high
- Essentially a moving glass wall, making a statement and letting in abundant natural light
Thermal and acoustical performance advantage
- Five chamber profile system
- Sash thickness of 88 mm (3.46")
- Glass thickness options up to 54 mm (2.13")
High quality for a
long life
- Steel reinforced uPVC profiles
- Welded sash corners
- High quality SIEGENIA hardware
- 10-year warranty
- Made in Canada, designed and engineered in Germany
Opening Types
O = Fixed portion
X = Slider portion
L = Left side slides first
R = Right side slides first
X = Slider portion
L = Left side slides first
R = Right side slides first
Maximum sizes
2 panel: 6500 x 2540 or 3048 x 2896 mm / 255.9" x 100" or 120" x 114"
3 panel: 6500 x 2540 or 3048 x 2896 mm / 255.9" x 100" or 120" x 114"
4 panel: 6500 x 2896 mm / 255.9" x 114"
2 panel: 6500 x 2540 or 3048 x 2896 mm / 255.9" x 100" or 120" x 114"
3 panel: 6500 x 2540 or 3048 x 2896 mm / 255.9" x 100" or 120" x 114"
4 panel: 6500 x 2896 mm / 255.9" x 114"
OX
XO
XOX
OXO L
OXO R
OXXO L
OXXO R
Maximum sizes
2 panel: 6500 x 2540 or 3048 x 2896 mm / 255.9" x 100" or 120" x 114"
2 panel: 6500 x 2540 or 3048 x 2896 mm / 255.9" x 100" or 120" x 114"
XO
OX
Maximum sizes
3 panel: 6500 x 2540 or 3048 x 2896 mm / 255.9" x 100" or 120" x 114"
3 panel: 6500 x 2540 or 3048 x 2896 mm / 255.9" x 100" or 120" x 114"
XOX
OXO R
OXO L
Maximum sizes
4 panel: 6500 x 2896 mm / 255.9" x 114"
4 panel: 6500 x 2896 mm / 255.9" x 114"
OXXO R
OXXO L
Finish Options
High Quality Foil
Our most popular finish, foil improves the durability and longevity of door profiles and even reduces warping. Easy to clean and scratch resistant, with different textures as well as colours available, foiled doors are a favourite among homeowners.
Explore Options
AluClip: Clip-On Aluminum Cladding
Get the commercial look and durable finish of aluminum while still benefiting from the thermal performance advantages of uPVC. AluClip is available in any colour for limitless design possibilities.
Custom Paint Colours
If painted doors are what you’re looking for, we do that too, using high quality paint in whatever colour you need.
Installation Related Options

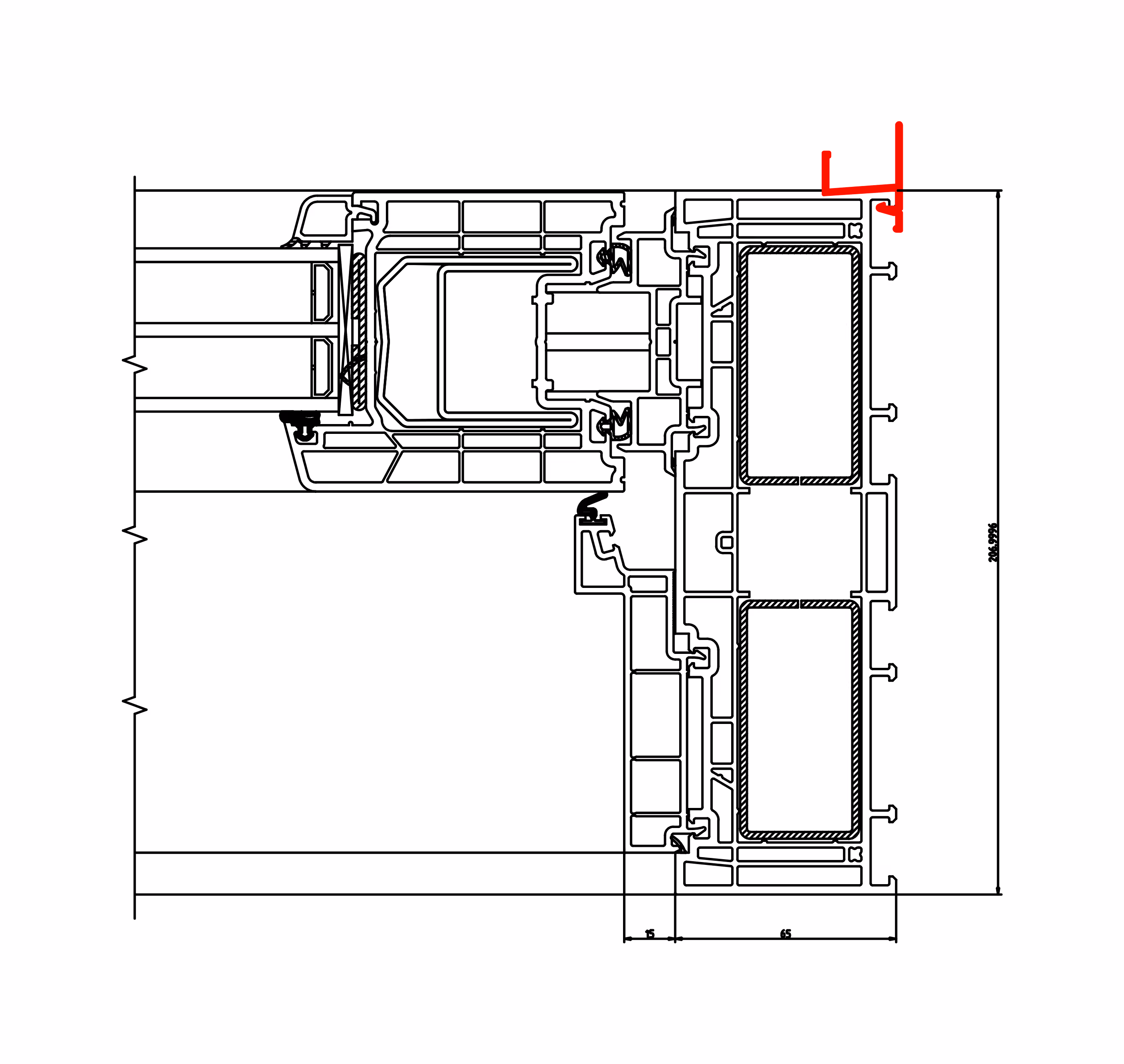

Equal Leg Frame
By default the PD88 frame comes without flange or brickmould.
Positioning Flange
Positioning flange is available for the PD88. Flange can be used to simplify the installation process and properly weatherproof the door.
Brickmould
Brickmould is available for the PD88 as an exterior trim option. Especially useful in renovation projects, it can also be used to achieve the aesthetic look of your choice. It is available in any colour, foiled or painted.
Knock-Down Kit
For special projects where there is limited access to the jobsite, we offer a knock-down kit of the PD88. With this option, the frame comes as separate parts and only the sash is in one piece.
Handle Options
Our handle sets can be configured in various ways:
(1) interior handle and exterior recessed pull,
(2) handles on both sides with a thumbturn lock inside and no keylock outside, or
(3) handles on both sides with a thumbturn lock inside and a keylock outside.
HOPPE Toulon Handle
This high quality handle from the reputable European brand HOPPE has a contemporary look and integrated security features. It is available in Black, White and Titanium.
HOPPE Tokyo Handle
This high quality handle, also from HOPPE, has a classic look. It is available in Black, White, Titanium, Silver and Brown.
Additional Options
SOFT CLOSE by SIEGENIA
The SOFT CLOSE function comes highly recommended by our team and makes even doors weighing up to 400kg (880lb) close softly, helping prevent injuries. Invisibly integrated into the sash, it works by braking the sash gently just before it reaches the end position and then automatically pulling the door shut.
Motorized Drive
For ultimate operational comfort and accessibility, the PremiDoor 88 can be equipped with a motor that operates the large sash at the press of the push button on the door, by remote, or with the SIEGENIA app.
Watch Video
Screen Solutions
We offer multiple retractable screen options from Wizard Screen Solutions, as
well as our in-house sliding screen solution.
VistaView™

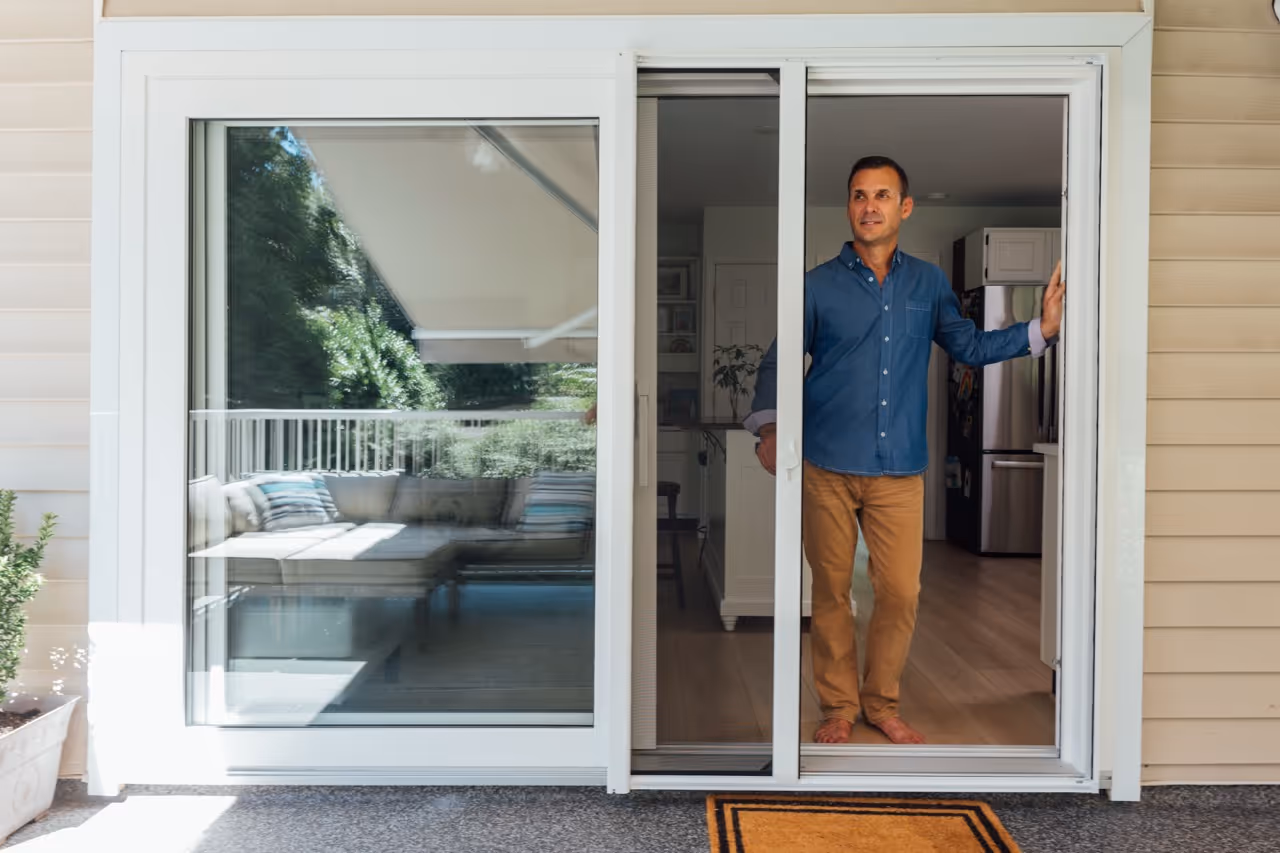

The VistaView™ from Wizard Screen Solutions is a high-end retractable screen that is captured in both the top and bottom tracks, keeping the mesh retained and tight at all times. Easy to operate, its auto stop technology makes it possible to stop the screen at any desired position to conveniently access doors. It can cover openings up to 8534 mm (28’) wide and 3353 mm (11’) high and is available in five standard colours, with custom RAL colours available upon request.
RetractaView™
The RetractaView™ is another screen from Wizard Screen Solutions, built to last with quality materials. It retracts smoothly and completely when opened. It can cover openings up to 2794 mm (110”) wide and 2743 mm (108”) high and is available in eight standard colours, with custom RAL colours available upon request.
Fentro Sliding Screen
Our in-house manufactured solution, the Fentro sliding screen is a high quality screen made with European screenbar, offering economical and effective bug protection that is perfectly integrated and aesthetically pleasing. It can cover openings up to 2000 mm (78”) wide and 2200 mm (86”) high. Standard colours are white and black, with custom RAL colours available upon request.
Performance Summary
| PremiDoor 88 | PremiDoor 76 | PremiSlide 76 | |
|---|---|---|---|
| Air Tightness | 0.02 cfm/ft2 | 0.05 cfm/ft2 | 0.05 cfm/ft2 |
| Water Tightness | 12.9 PSF | 10.6 PSF | 10.7 PSF |
| Structural - Wind Load Resistance | 60 PSF | 35 PSF | 35 PSF |
| NAFS Performance Class & Grade | LC-PG60 & CW-PG50 | LC-PG35 & CW-PG30 | LC-PG35 & CW-PG30 |
| U-Factor IP (triple glass) | 0.18 | 0.19 | 0.18 |
| SHGC (triple glass) | 0.21 | 0.21 | 0.16-0.35 |
Gallery
Images showcasing our customers’ projects with the PremiDoor 88.
